JLG 660SJ Boom Lift Telescopic 22.02 m, 340 kg — heavy equipment rental and sales in Batam
For RentFor Sale

JLG 660SJ Boom Lift Telescopic 22.02 m, 340 kg

JLG 660SJ 4WD 4WS diesel telescopic boom lift, 22.02 m working height, 17.4 m reach, 340 kg (restricted) / 250 kg capacity, 1.83 m jib.

Available brands

Operator can be included

Operator skills10+ years experienceCertifiedSafety awarenessMechanical skillsSense of balanceAttention to detail

Note: A certified operator is available for this unit when you need one.

Get more info about availability, price and delivery

Get a Quote

Reference code

CLB-JLG660SJ

Need assistance?

Our expert is ready to answer your questions and advise you.

CLB Expert Team

Senior advisor

Technical Specifications

Working Height
22.02 m
Platform Capacity
340 kg
Horizontal Outreach
17.4 m
Platform Height
20.02 m
Platform Capacity (Restricted / Unrestricted)
340 kg / 250 kg
Platform Size
0.91 × 2.44 m
Platform Rotation
180° (hydraulic)
Jib
1.83 m, 130° articulation (+70° / -60°)
Slewing
360° continuous
Drive Speed (Stowed / Raised)
6.3 km/h (max.)
Gradeability
45 %
Turning Radius
3,760 mm
Tail Swing Radius
1,220 mm
Drive
4WD × 4WS
Tyres
Foam-filled non-marking
Engine
Deutz D2011L04
Fuel
Diesel
Tank Capacity
117 L
Hydraulic Tank
129 L
Wheelbase
2,500 mm
Ground Clearance
300 mm
Operating Weight
12,500 kg
Dimensions
10.79 × 2.49 × 2.51 m (L × W × H, stowed)

About This Unit

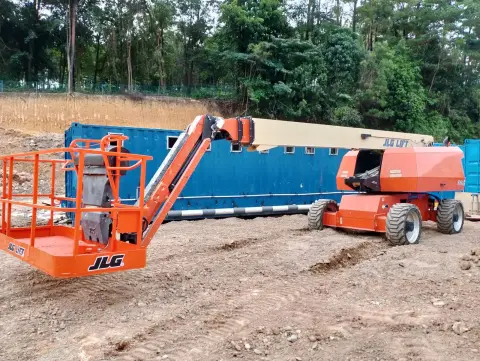

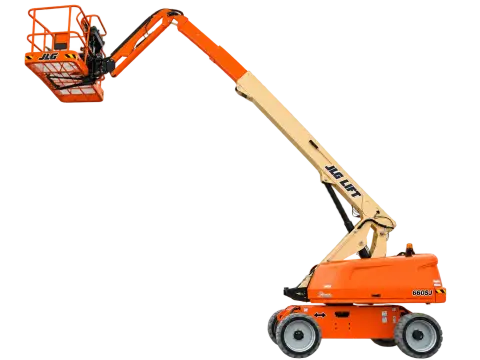

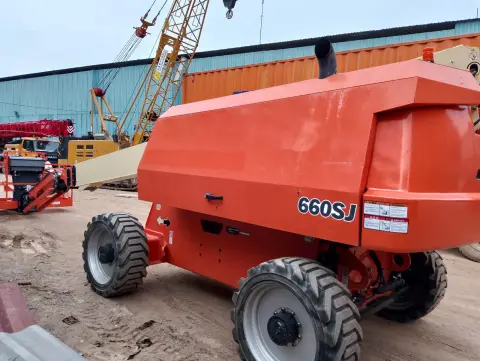

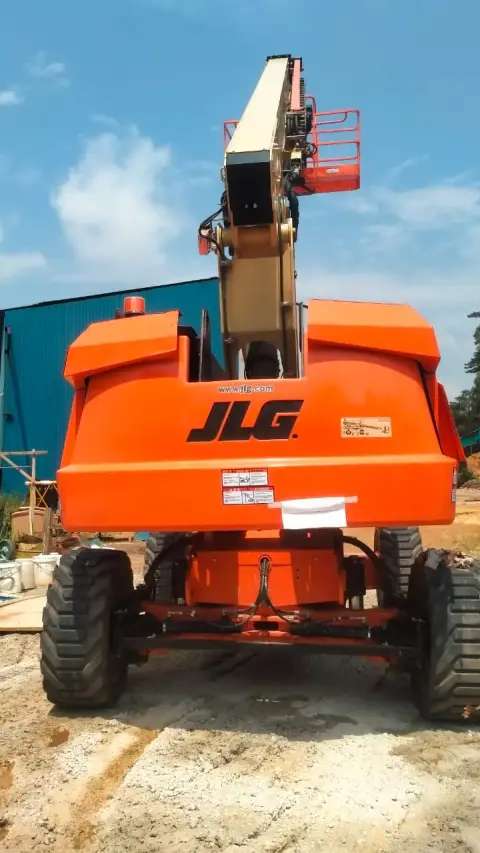

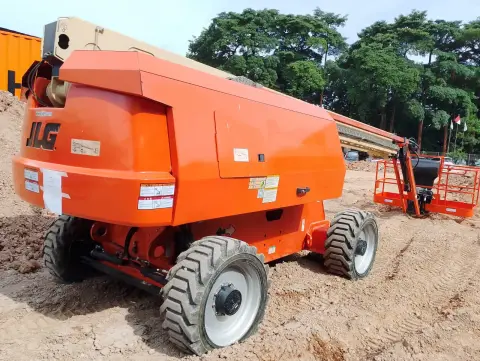

The JLG 660SJ is a diesel telescopic boom lift with an articulating jib. The platform rises to 20.02 m (22.02 m working height) and reaches 17.4 m out, carrying 340 kg in restricted mode or 250 kg across the full envelope. A 1.83 m jib with 130° articulation and a 0.91 × 2.44 m platform with 180° hydraulic rotation make precise positioning easy. Four-wheel drive and four-wheel steer give a 3.76 m outside turning radius, and the Deutz engine with a 117 L tank covers a full shift. Suited to mid-height work on Batam shipyards, construction sites and industrial installations.

Suited to industries

FAQ

About the JLG 660SJ Boom Lift Telescopic 22.02 m, 340 kg

The JLG 660SJ Boom Lift Telescopic 22.02 m, 340 kg has working height 22.02 m, platform capacity 340 kg, horizontal outreach 17.4 m, platform height 20.02 m, and platform capacity (restricted / unrestricted) 340 kg / 250 kg. The full specifications are in the table above.

Both. The JLG 660SJ Boom Lift Telescopic 22.02 m, 340 kg is available to rent or to buy in Batam.

It's flexible — daily, weekly, monthly, or for the whole project. Mention the duration and start date when you ask for a quote.

Yes. A certified operator can be included if you need one — just mention it when you ask for a quote.

The price depends on the unit, the rental period and the delivery location, so we give it as a quotation rather than a fixed price list. Send the unit, duration, location and start date on WhatsApp — with all four, we usually send the quote the same day.

Yes. We deliver across Batam island, including Batu Ampar, Kabil, Sekupang, Tanjung Uncang and Muka Kuning. For delivery off the island, contact us first so we can work out the schedule and cost.

Tap the WhatsApp button on this page or call +62 822-8811-4040. Mention reference code CLB-JLG660SJ, the work location, duration and start date so the quote can be worked out straight away.
