JLG 860SJ Boom Lift Telescopic 28.21 m, 340 kg
JLG 860SJ diesel telescopic boom lift, 28.21 m working height, 22.86 m horizontal outreach, 340 kg (restricted) / 230 kg capacity, 1.83 m articulating jib.
Available brands
Operator can be included
Operator skills10+ years experienceCertifiedSafety awarenessMechanical skillsSense of balanceAttention to detailNote: A certified operator is available for this unit when you need one.
Get more info about availability, price and delivery
Get a QuoteReference code
CLB-JLG860SJ
Technical Specifications
- Working Height
- 28.21 m
- Platform Capacity
- 340 kg
- Horizontal Outreach
- 22.86 m
- Platform Height
- 26.21 m
- Platform Capacity (Restricted / Unrestricted)
- 340 kg / 230 kg
- Platform Size
- 0.92 × 2.44 m
- Platform Rotation
- 180° (hydraulic)
- Jib
- 1.83 m, 130° articulation (+70° / -60°)
- Slewing
- 360° continuous
- Drive Speed (Stowed / Raised)
- 5.6 km/h (max.)
- Gradeability
- 45 %
- Turning Radius
- 6,020 mm
- Tail Swing Radius
- 1,420 mm
- Drive
- 4WD × 2WS
- Tyres
- 18-625 foam-filled
- Engine
- Deutz TD2.9 L4, 50 kW (68 HP)
- Fuel
- Diesel
- Tank Capacity
- 117.3 L
- Hydraulic Tank
- 235 L
- Wheelbase
- 3,060 mm
- Ground Clearance
- 280 mm
- Operating Weight
- 16,732 kg
- Dimensions
- 12.2 × 2.49 × 3.05 m (L × W × H, stowed)
About This Unit

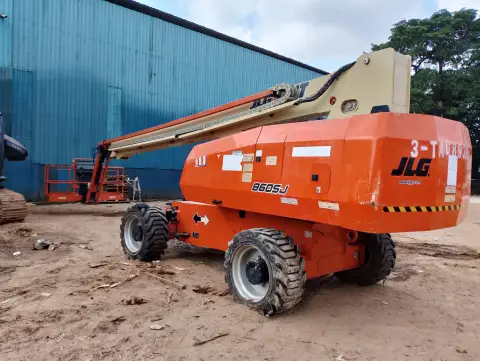

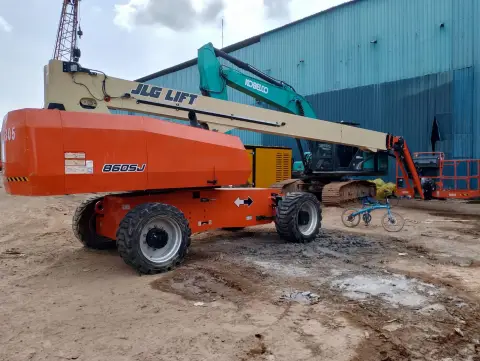

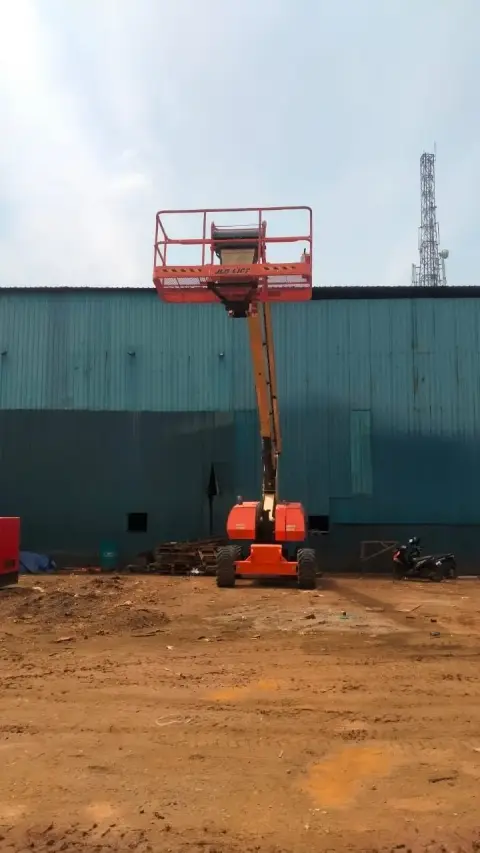

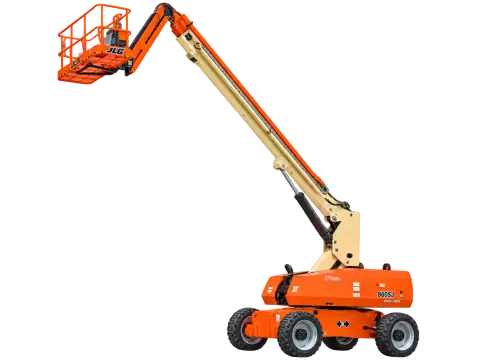

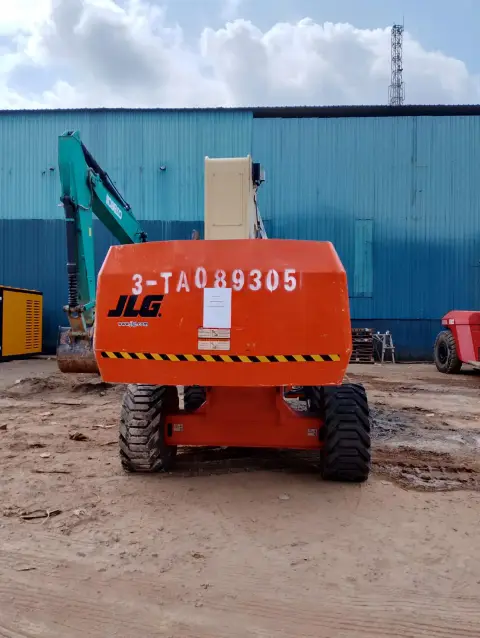

The JLG 860SJ is a diesel telescopic boom lift with class-leading 22.86 m horizontal outreach. The platform rises to 26.21 m (28.21 m working height) carrying 340 kg in restricted mode or 230 kg across the full envelope. A 1.83 m articulating jib (130°) and a 0.92 × 2.44 m platform with 180° rotation make awkward work points easy to reach. It runs a 50 kW Deutz TD2.9 engine with hydrostatic drive, 4WD and 45% gradeability. Ideal for hull painting, steel erection and inspection on Batam shipyards and large projects.
Suited to industries
FAQ
About the JLG 860SJ Boom Lift Telescopic 28.21 m, 340 kg
The JLG 860SJ Boom Lift Telescopic 28.21 m, 340 kg has working height 28.21 m, platform capacity 340 kg, horizontal outreach 22.86 m, platform height 26.21 m, and platform capacity (restricted / unrestricted) 340 kg / 230 kg. The full specifications are in the table above.
Both. The JLG 860SJ Boom Lift Telescopic 28.21 m, 340 kg is available to rent or to buy in Batam.
It's flexible — daily, weekly, monthly, or for the whole project. Mention the duration and start date when you ask for a quote.
Yes. A certified operator can be included if you need one — just mention it when you ask for a quote.
The price depends on the unit, the rental period and the delivery location, so we give it as a quotation rather than a fixed price list. Send the unit, duration, location and start date on WhatsApp — with all four, we usually send the quote the same day.
Yes. We deliver across Batam island, including Batu Ampar, Kabil, Sekupang, Tanjung Uncang and Muka Kuning. For delivery off the island, contact us first so we can work out the schedule and cost.
Tap the WhatsApp button on this page or call +62 822-8811-4040. Mention reference code CLB-JLG860SJ, the work location, duration and start date so the quote can be worked out straight away.
