JLG R1932 Scissor Lift 7.8 m, 230 kg
Electric scissor lift JLG R1932, 7.8 m working height, 230 kg capacity — just 81 cm wide for narrow aisles, doorways and goods lifts.
Available brands
Operator can be included
Operator skills10+ years experienceCertifiedSafety awarenessMechanical skillsSense of balanceAttention to detailNote: A certified operator is available for this unit when you need one.
Get more info about availability, price and delivery
Get a QuoteReference code
CLB-JLGR1932
Technical Specifications
- Working Height
- 7.8 m
- Platform Capacity
- 230 kg
- Operating Weight
- 1,521 kg
- Platform Height
- 5.8 m
- Extension Deck Capacity
- 120 kg
- Extension Deck
- 0.91 m
- Max Occupants
- 2 people (indoor) / 1 person (outdoor)
- Rated Use
- Indoor & outdoor, drivable at full height
- Platform Size
- 1.59 × 0.64 m
- Drive Speed (Stowed / Raised)
- 3.4 km/h / 0.8 km/h
- Gradeability
- 25 %
- Turning Radius
- 1,700 mm
- Lift / Lower Time
- 22 / 24 seconds
- Batteries
- 24 V DC (4 × 6 V, 220 Ah)
- Dimensions
- 1.74 × 0.81 × 2.10 m (rails folded: 1.63 m)
About This Unit

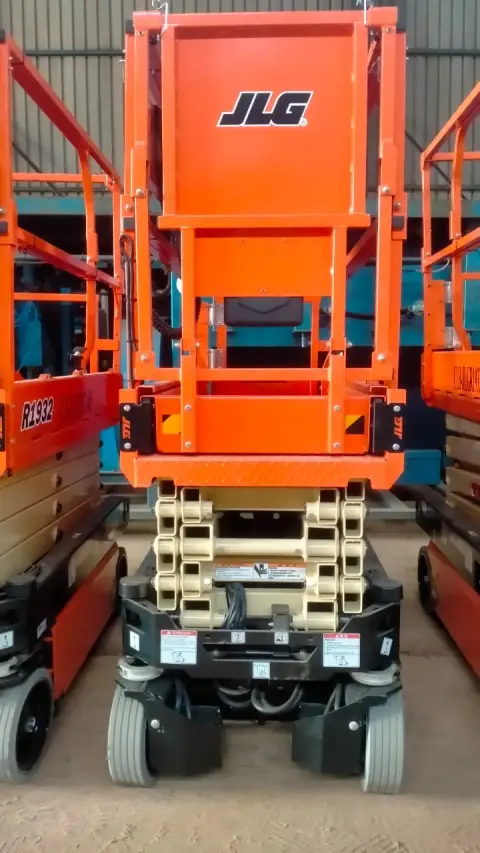

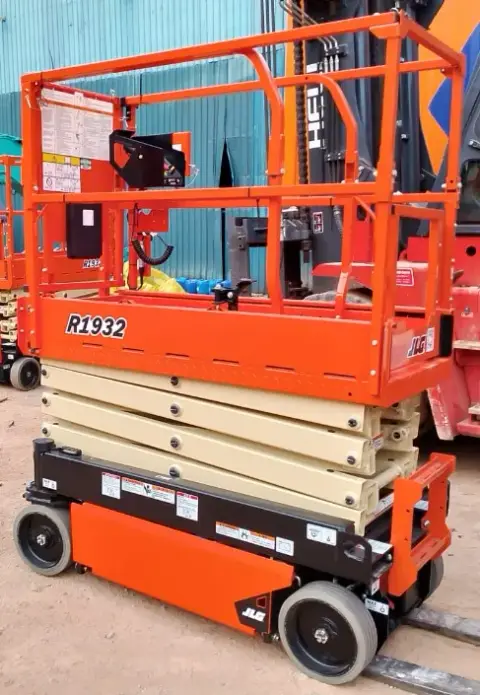

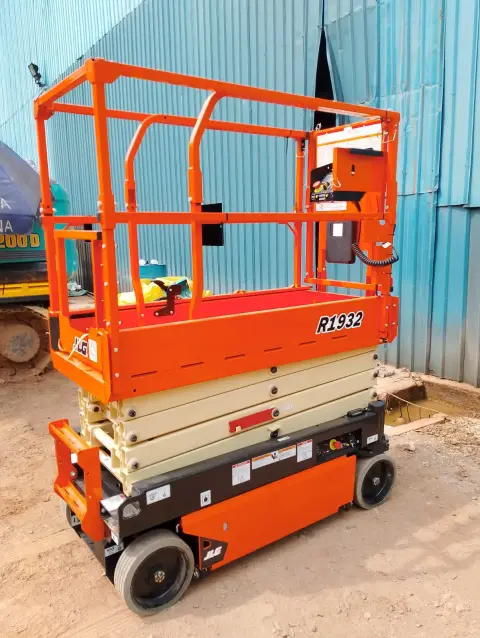

The JLG R1932 is an electric slab scissor lift with a 5.8 m platform height (7.8 m working height) and a 230 kg capacity for 2 people. At just 81 cm wide with a zero inside turning radius, it passes through standard doorways, warehouse aisles and goods lifts. It drives at full height indoors and outdoors, with a 0.91 m extension deck for extra reach. Powered by a 24 V battery pack — quiet and emission-free for installation, building maintenance and factory work across Batam. Available to rent and buy, handed over after a function check.
Suited to industries
FAQ
About the JLG R1932 Scissor Lift 7.8 m, 230 kg
The JLG R1932 Scissor Lift 7.8 m, 230 kg has working height 7.8 m, platform capacity 230 kg, operating weight 1,521 kg, platform height 5.8 m, and extension deck capacity 120 kg. The full specifications are in the table above.
Both. The JLG R1932 Scissor Lift 7.8 m, 230 kg is available to rent or to buy in Batam.
It's flexible — daily, weekly, monthly, or for the whole project. Mention the duration and start date when you ask for a quote.
Yes. A certified operator can be included if you need one — just mention it when you ask for a quote.
The price depends on the unit, the rental period and the delivery location, so we give it as a quotation rather than a fixed price list. Send the unit, duration, location and start date on WhatsApp — with all four, we usually send the quote the same day.
Yes. We deliver across Batam island, including Batu Ampar, Kabil, Sekupang, Tanjung Uncang and Muka Kuning. For delivery off the island, contact us first so we can work out the schedule and cost.
Tap the WhatsApp button on this page or call +62 822-8811-4040. Mention reference code CLB-JLGR1932, the work location, duration and start date so the quote can be worked out straight away.
